Action Properties

Please read the Material Usage Rules on this site.

🔗 Original page — Source of this material

Description​

While editing and debugging your project, you can modify any previously saved parameters of actions.

How to open the window?​

It depends on the mode in which your project is open.

  • with browser:

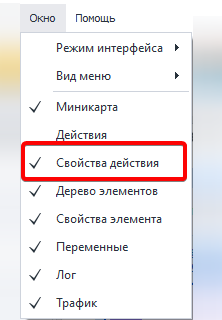

  • you need to enable the display of this window via the *Window => Action Properties menu. This window will show the settings of the selected action.

image-20210221-163159

  • without browser:

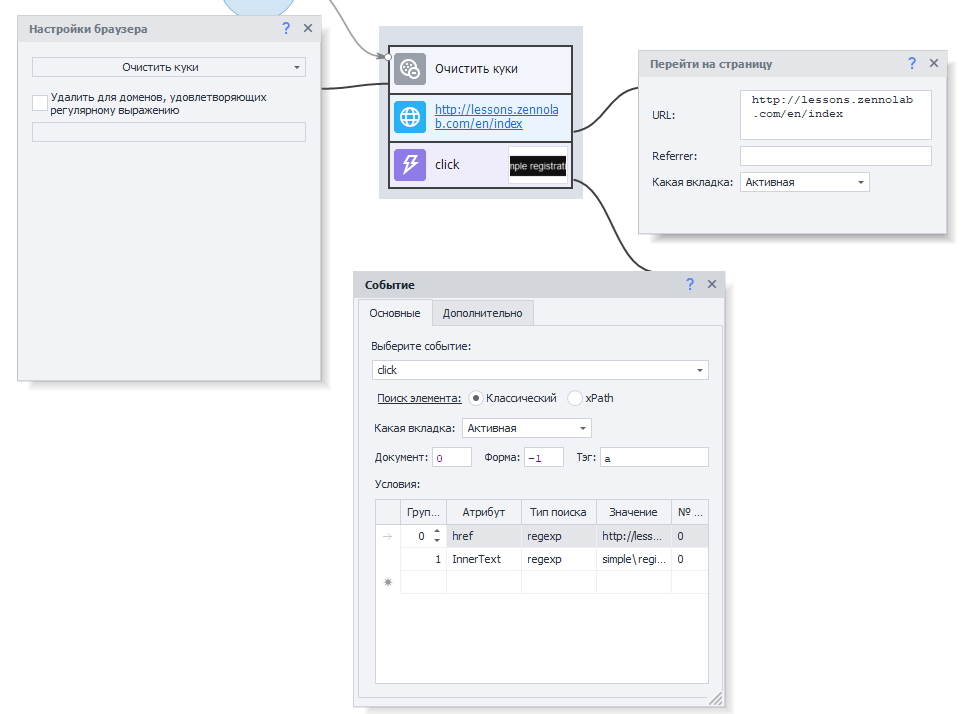

  • you need to double-click the action, and the properties window will open. In this mode, you can open the window for several actions at once:

image-20210221-164336

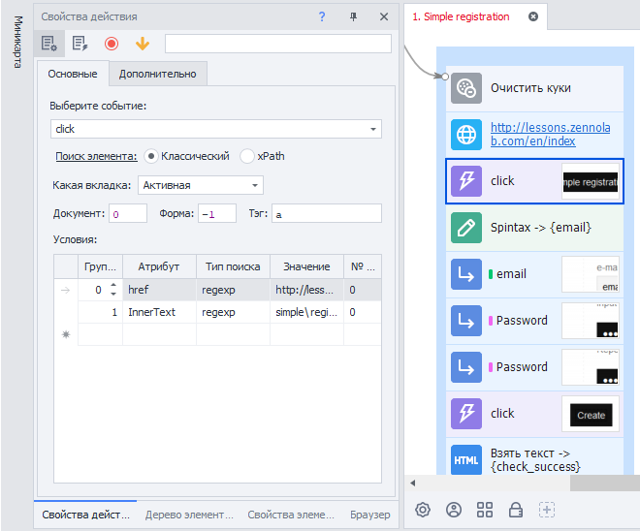

“With browser” mode

image-20210221-163324

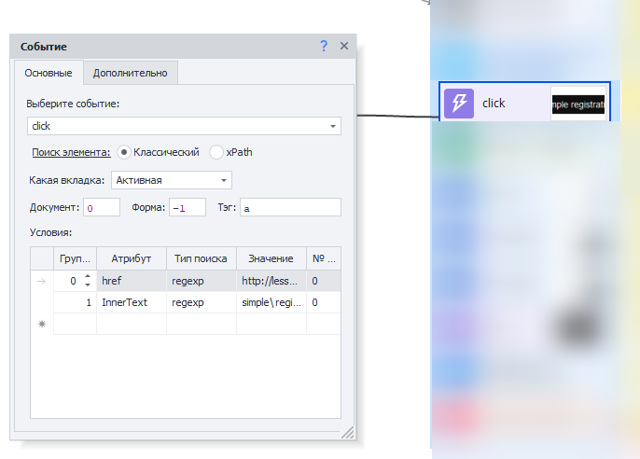

“Without browser” mode

image-20210221-163606

Tip

In "With browser" mode, you can also open the properties window for several actions at once. To do this, go to Edit => Settings => Editor tab, and enable the option to Open multiple action settings in "With browser" mode.

The “Completed” Button​

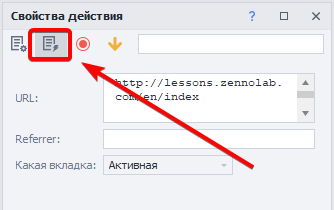

If you encounter an error while debugging an action, you can make real-time corrections to various parameters. The feature that lets you see what values variables had when the action ran will help you with this:

image-20210221-165031

Once you activate this feature, ❗→ variables will be replaced with their stored values.

Attention

This will only work after the action has been executed.

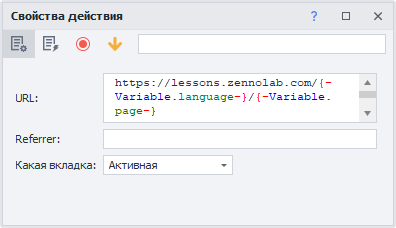

Before activation

image-20210615-164459

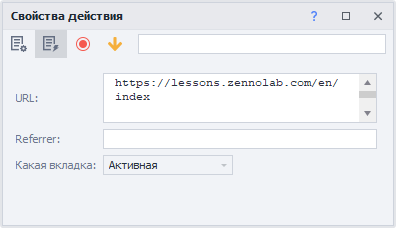

After activation

image-20210615-164511

Comment​

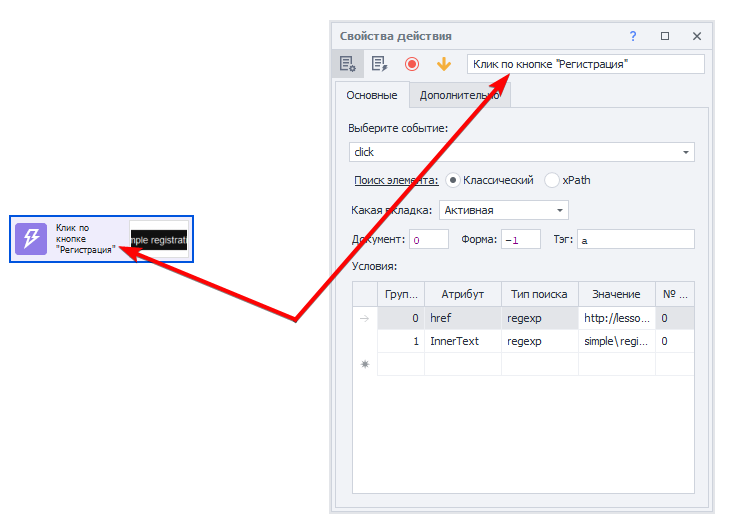

For easier navigation within your project, you can add a comment to any action:

image-20210221-165248

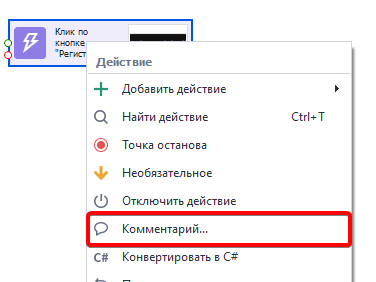

You can also change this text by right-clicking the action and selecting Comment from the context menu:

image-20210221-165428

Breakpoint​

Allows you to pause the project at the selected action. This is very useful for debugging when you need to analyze the contents of variables or the page at a specific moment during the project's execution.

There are two ways to enable it: through the context menu, or from the action properties.

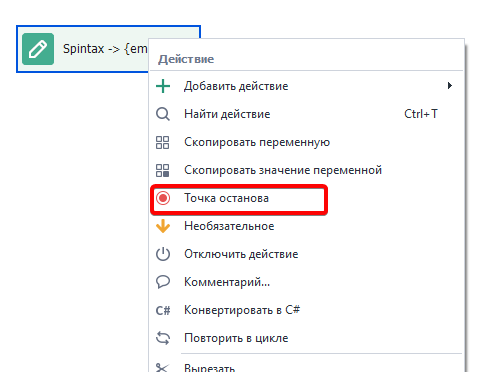

Context menu

image-20210222-194754

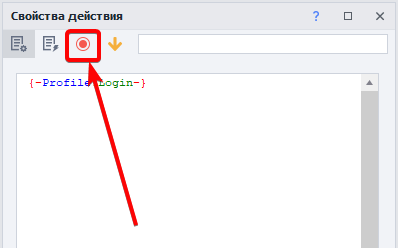

Action properties

image-20210222-194929

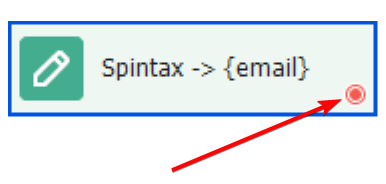

Once enabled, a red circle icon will appear on the action:

image-20210222-195052

Optional​

When this option is enabled, the action will always follow the successful (green) branch, even if an error actually occurred.

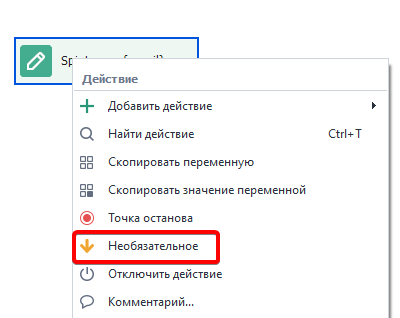

Just like with the breakpoint, you can make an action optional in two ways: via the context menu or action properties.

image-20210222-195919

image-20210222-195755

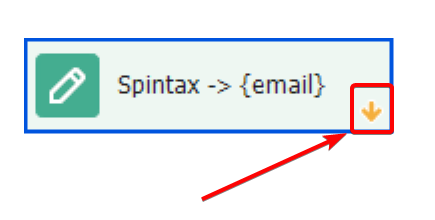

How it looks on the action:

image-20210222-200119
